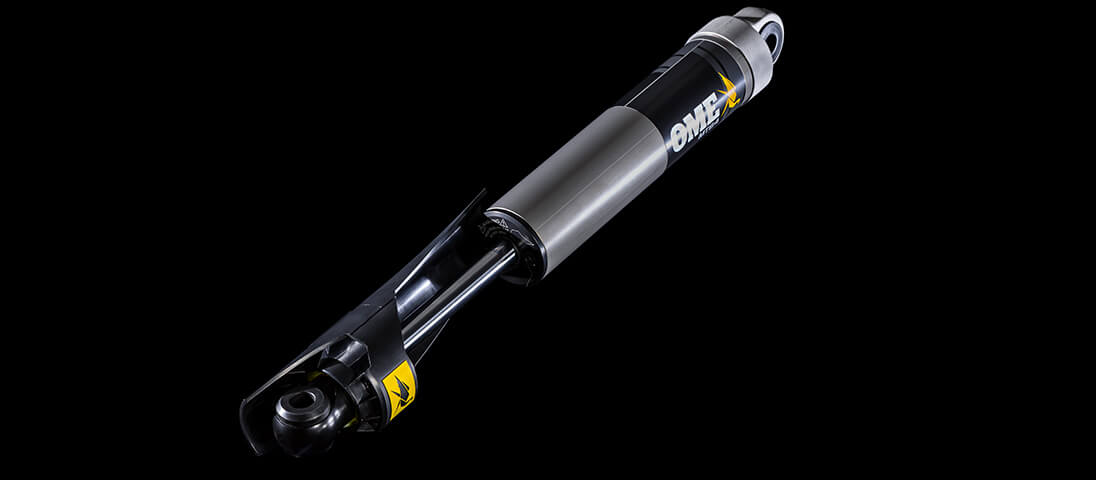

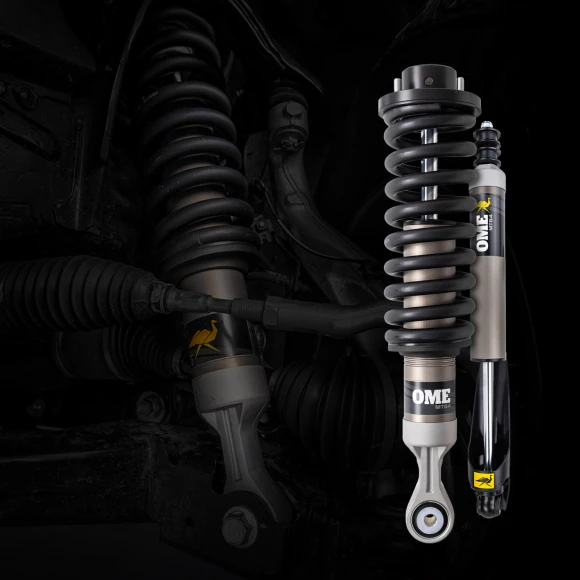

Developed in-house by ARB’s team of OME engineers, the MT64 2.8in monotube shock combines the rugged dependability of our Nitrocharger with select premium features inspired by the BP-51. The result? A purpose-built shock that’s just as capable tackling remote tracks on the weekend as it is handling daily duty on the pavement.
We take a deep dive into the standout features, smart design, and precision engineering behind MT64 shocks and how seamlessly they integrate into the Old Man Emu suspension lineup.

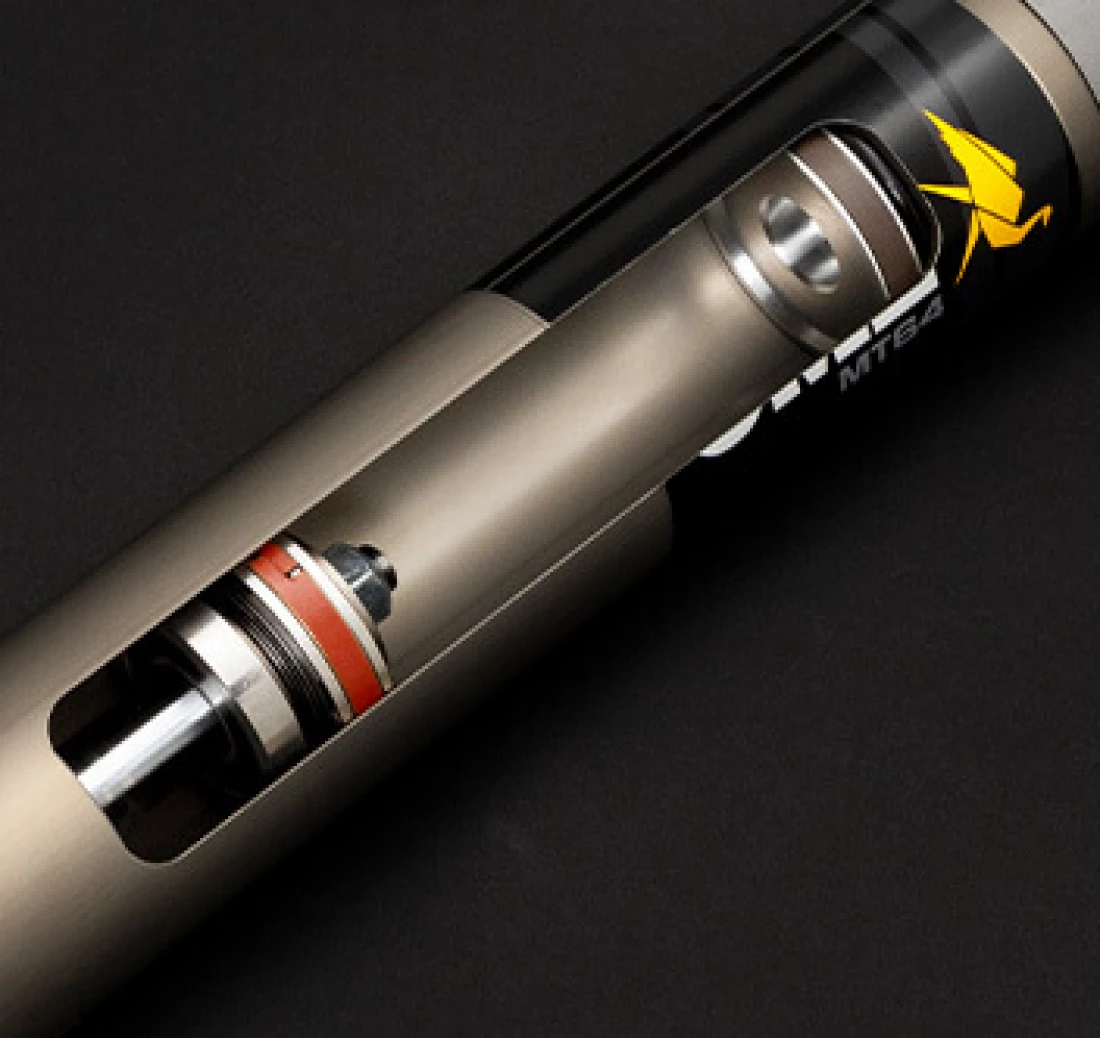

The huge 2.5in internal bore allows for more oil and bigger piston and shim stacks, allowing precise tuning to provide more control through the stroke giving a more refined ride

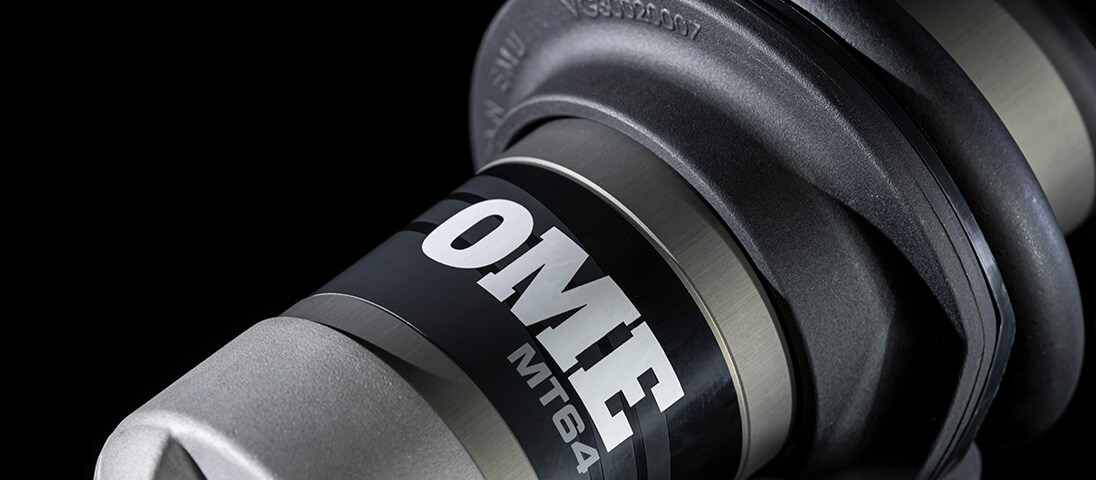

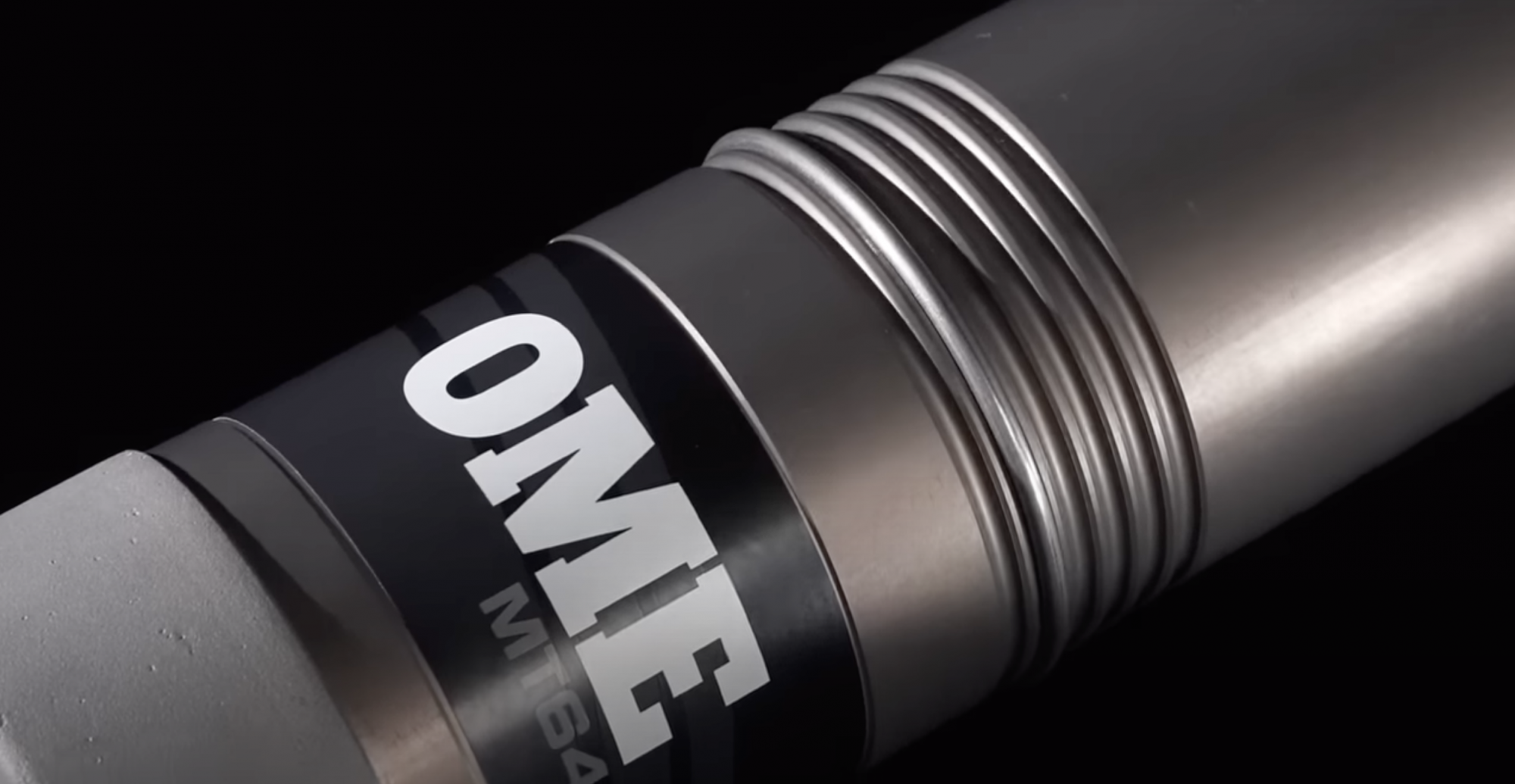

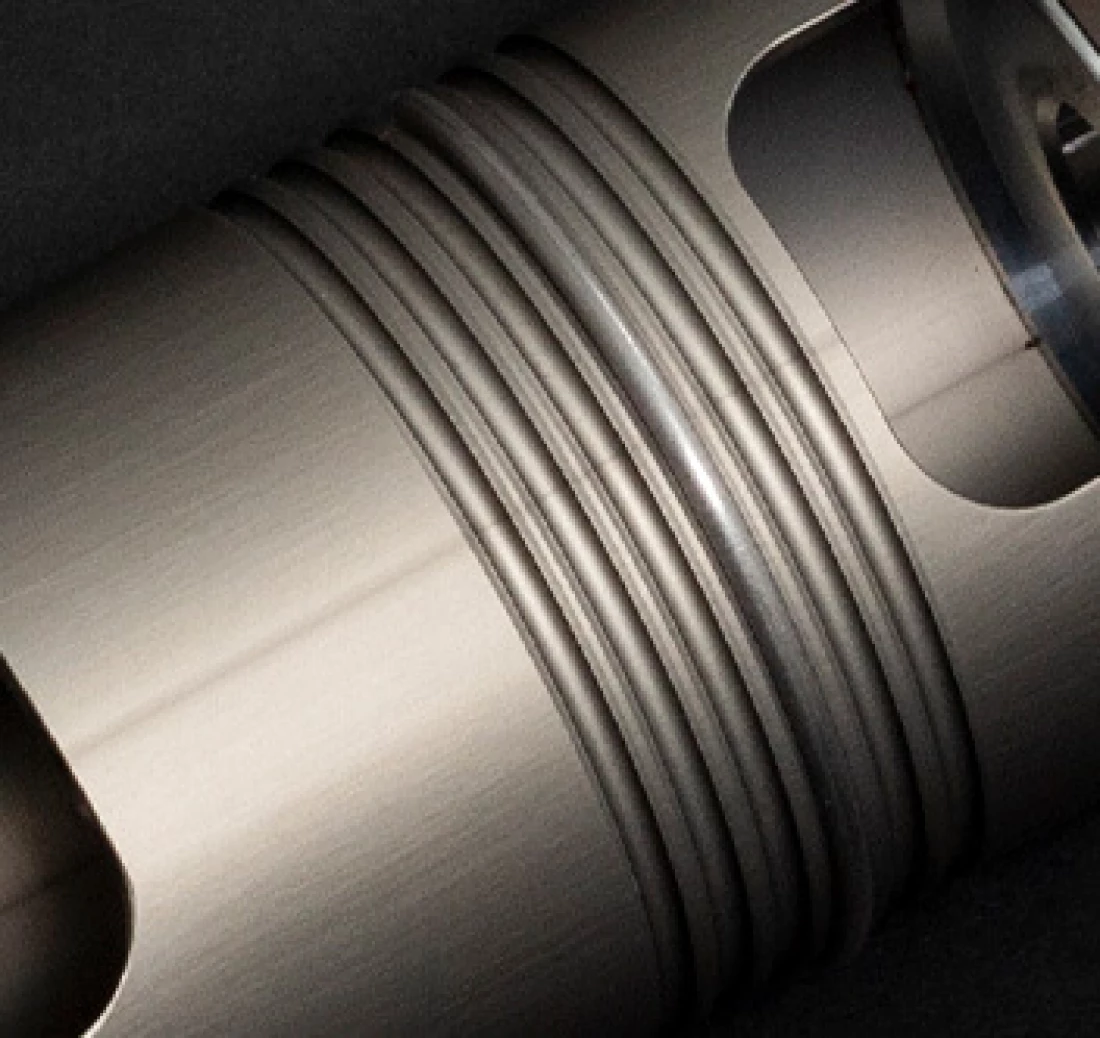

Utilizing ridges on the body of the shock, OME engineers have included an configurable spring seat with 6 positions in 5mm increments, which allows for one coil spring to cater for added accessory weights
In addition to plush everyday comfort, MT64 is also designed with a hydraulic end zone top out, which provides added padding at the shock’s full extension, to compensate for any unexpected bumps
Featuring the same aerospace grade aluminium as our high-performance BP-51 to dissipate heat effectively, the MT64 also boasts a 22.5mm piston rod (shaft) for exceptional stability

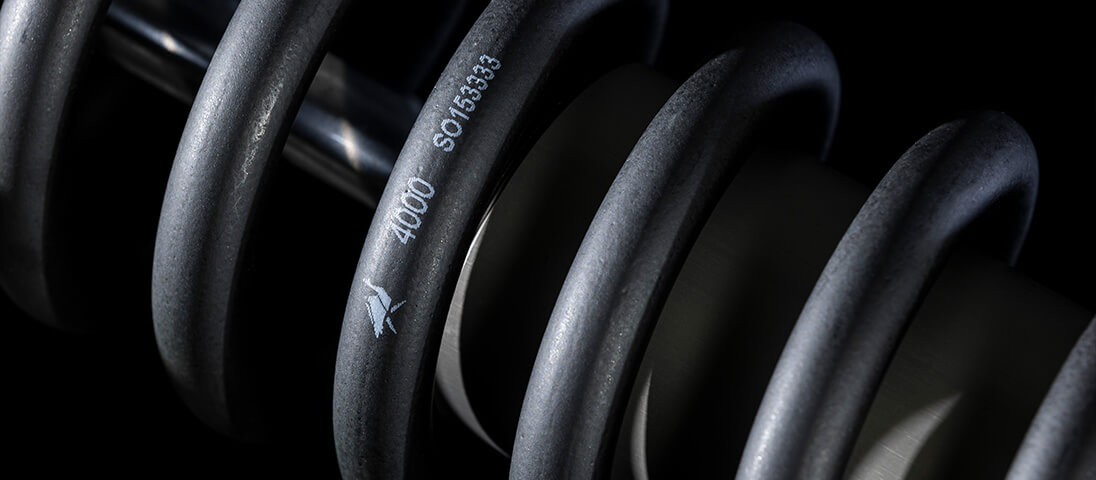

Adjustable spring seat with 6 positions in 5mm increments, allows for one coil spring to cater for different weight variations

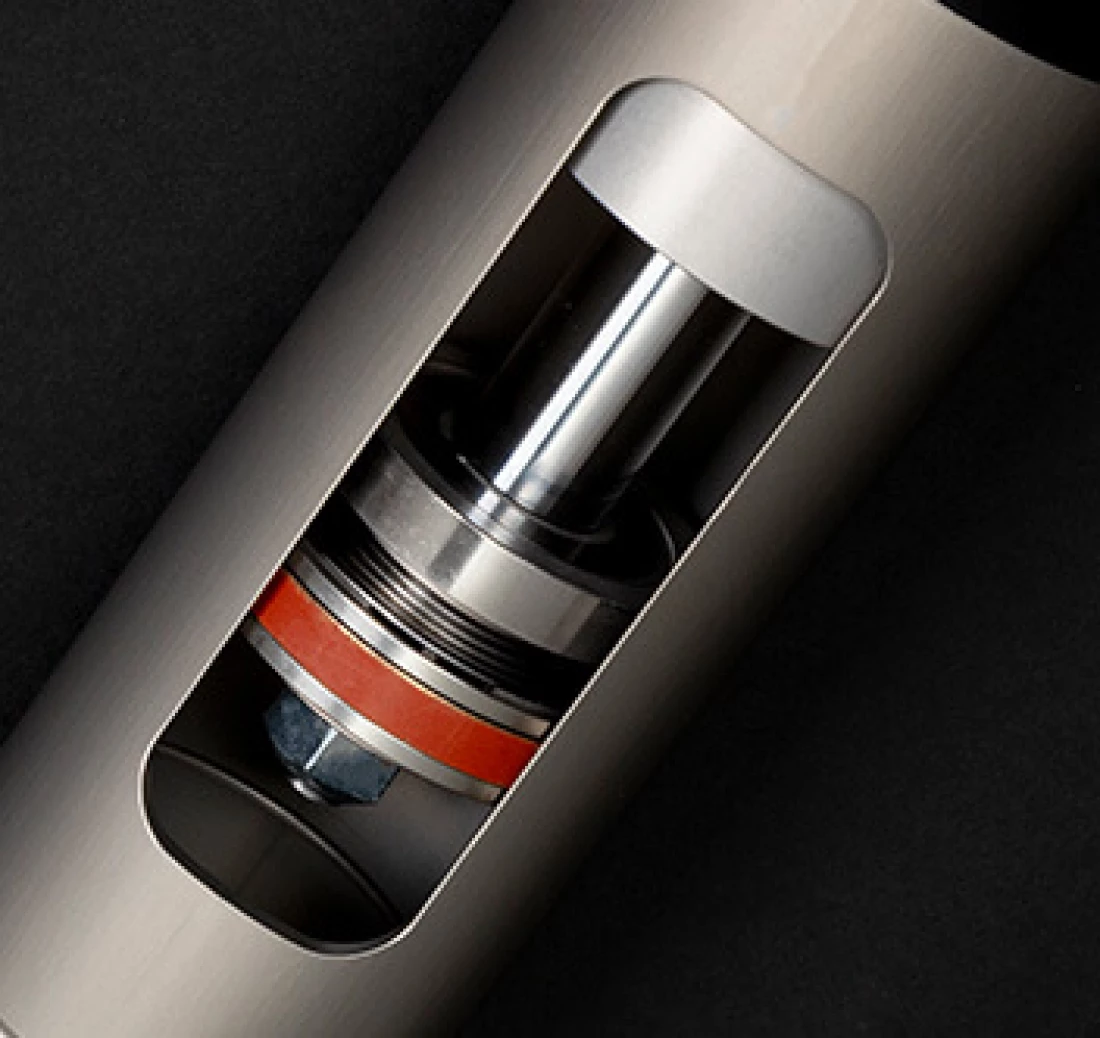

The huge 64mm (2.5in) internal bore allows for more oil and bigger piston and shim stacks, to reduce heat providing more control through the stroke giving a more refined ride
Utilizing the same aerospace grade aluminum as our high-performance BP-51 to dissipate heat effectively

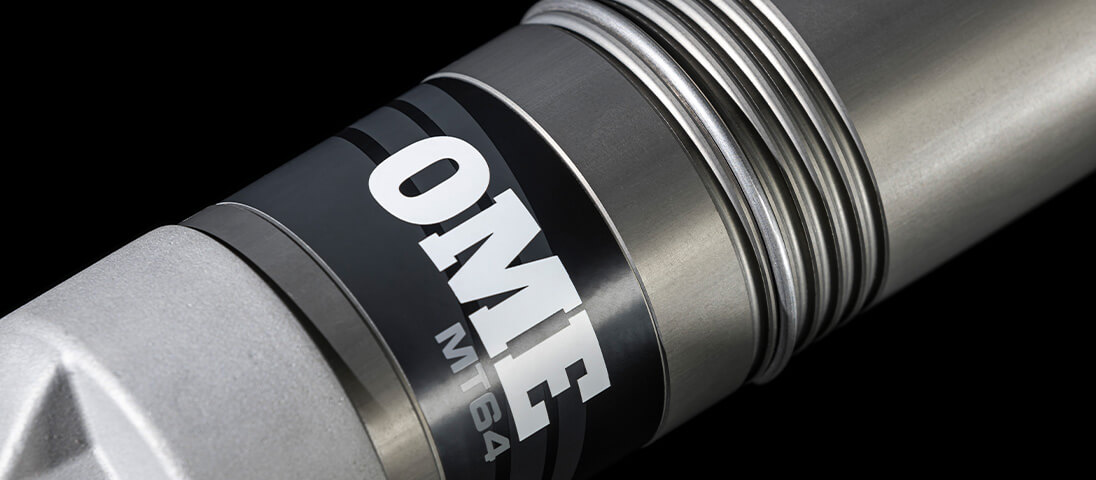

Covered with military spec hard anodized finish, the MT64 has superior corrosion resistance and can handle extreme temperatures.
In addition to plush everyday comfort, MT64 is also designed with a hydraulic end zone top out, which provides added padding at the shock’s full extension, to compensate for any unexpected bumps
ARB's uncompromising Old Man Emu suspension team has designed, engineered and manufactured the MT64, giving you confidence in the quality
Smooth, controlled ride for everyday and long-distance driving to reduce fatigue and general wear and tear on your vehicle’s components
MT64’s sizable shape makes it one of the biggest monotubes on the market, providing users with more of every aspect of the shock
Providing unrivaled Noise, Vibration, Harshness (NVH) compliance, the bushes limit feedback to the driver through the suspension components. The natural rubber bushes provide a noise-free cushioned ride due to the softer finish and its ability to absorb bumps on the road

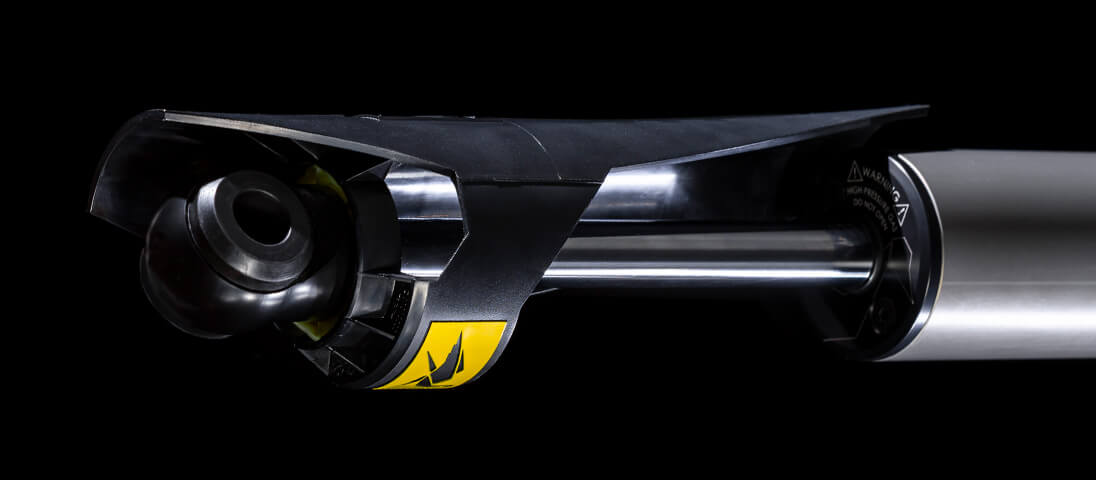

Equipped with a larger 22.5mm (7/8in) piston rod (shaft), the hard chrome finished rod provides improved strength and exceptional stability
MT64 comes with the backing of ARB’s global support network, including a 3-year warranty which ensures you’ll go further for longer

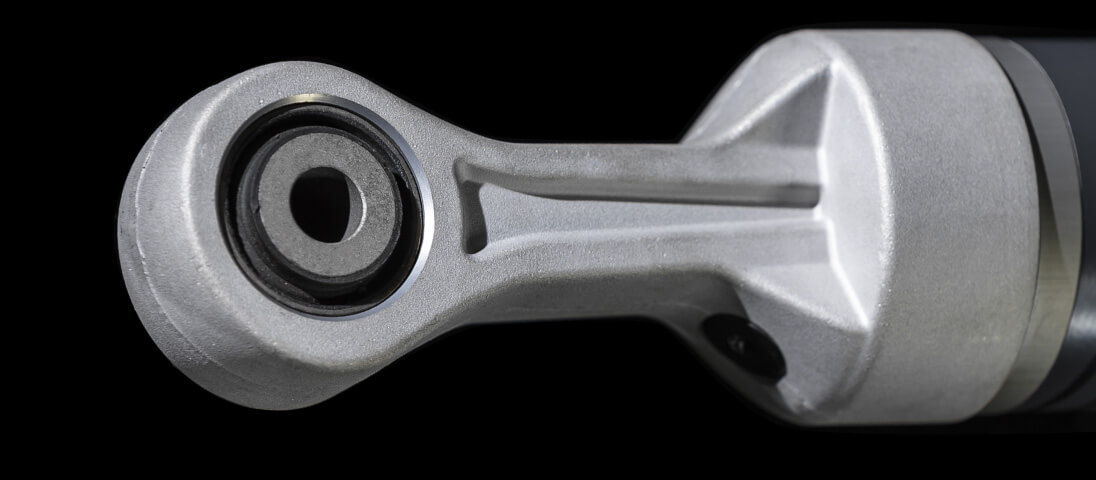

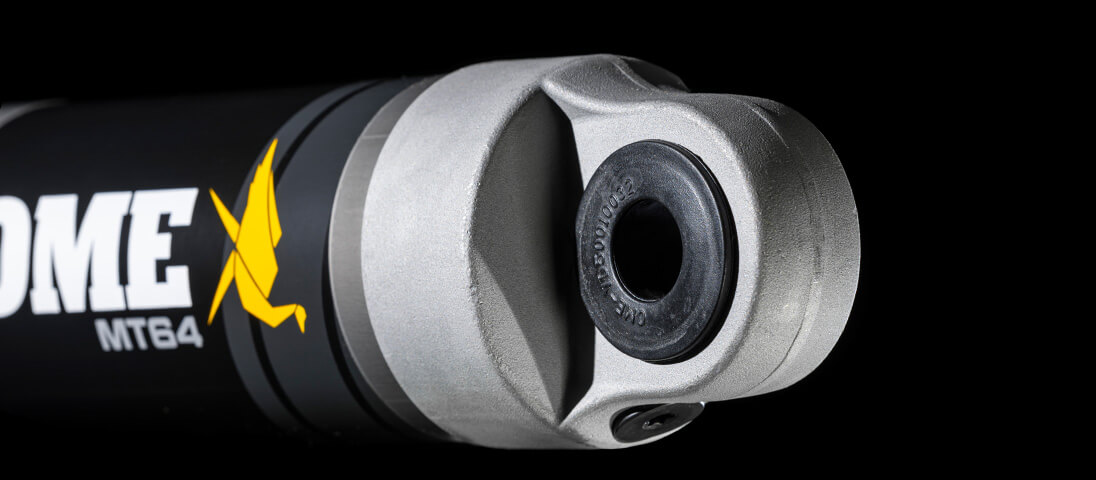

The expertly forged 6061 aluminium bodycaps provide increased strength to this solid shock, and also assist in dissipating heat to improve performance

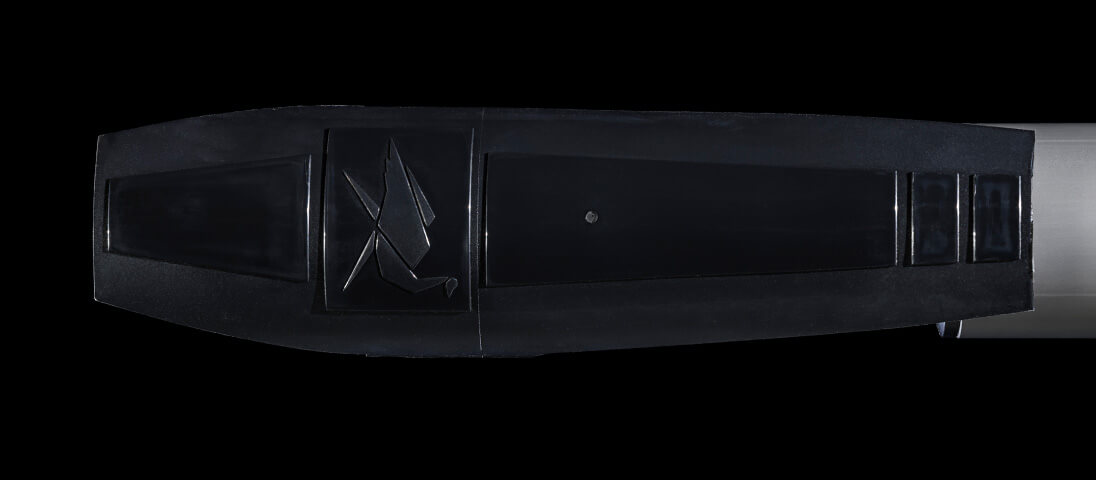

Made from high density polyethylene, the shaft guard is designed to protect the shaft from stones and other debris and is also replaceable
Reinforced with a resilient multi-lip combo seal which is designed to handle high pressure and shaft speeds, whilst also being made from a material that will handle a high temperature range
MT64 is sealed with a bump cap that utilises an integrated wiper seal, to guarantee the prevention of any dust, dirt and contaminant ingress
TACOMA GEN 3 2022+
OME MT64 shocks deliver the control and confidence of a 2.8-inch shock without the added complexity.
The MT64’s name is derived from the construction of the shock absorber. The MT is the abbreviated version of the word monotube, relating to the shocks singular tube design. The 64 describes the measurement of the massive 64-millimetre (2.5-inch) internal bore.
As the name suggests, the twin tube has a second internal tube inside the shock to separate oil and nitrogen gas. This is a proven technology that works very well, but has its limitations around oil volume and tuning capability due to the piston and overall internal volume being smaller due to having to house a second tube. A monotube shock absorber is a single body design, which utilises a floating piston at the top of the shock body to separate the oil and nitrogen gas. This allows a much larger amount of oil to be inside the shock absorber, which not only limits the shock fade, but also increases the overall size of the piston. This increase gives our engineers a huge scope for tuning, allowing us to tune your vehicle perfectly.
The MT64 takes inspiration from our tried and proven Nitrocharger, combining with our in-house designed and manufactured world class BP-51 shock absorber, filling the gap between affordable reliability and ultimate race inspired performance. If you’re an avid camper and 4WDer, the MT64 is the perfect companion to get you there and back again with ultimate reliability, all while in complete comfort and control for hours on end.
Due to the increased oil volume and shim stack, the MT64 performs well with added weight. Our engineers have ensured the shock is the perfect companion for overlanding with your camper/van in tow, providing superior comfort and control even when fully loaded.
The MT64 range has been extensively tuned by the Old Man Emu team to suit each individual vehicle, and provide multiple shock options for your vehicle. The result is a damper range capable of multiple configurations of accessories and weight for the vehicle, ensuring that our OME engineers have done the work for you in terms of tuning. This is achieved with a configurable spring seat allowing your vehicle height to be adjusted as you add or remove accessories. For the driver who just wants reliability and all the hard work done, MT64 is for them and doesn’t require any fine tuning or adjustability.
Our well known Nitrocharger range is a twin tube design, compared to the MT64 which we have opted for a monotube design. The MT64 has a massive internal bore of 2.5-inch bore which gives our engineers a much larger scope for perfectly tuning the shock absorber for any vehicle platform. This results in a large increase in vehicle control and comfort. Due to the large internal oil volume, MT64 provides consistent damping performance over a wide temperature range and allows you to travel for as long as you need. The MT64 also feature an anodized aluminum body which dissipates heat up to 15x faster and is 1.3x lighter than steel, whilst also providing superior corrosion resistance.
